Sanitary Divert Valve

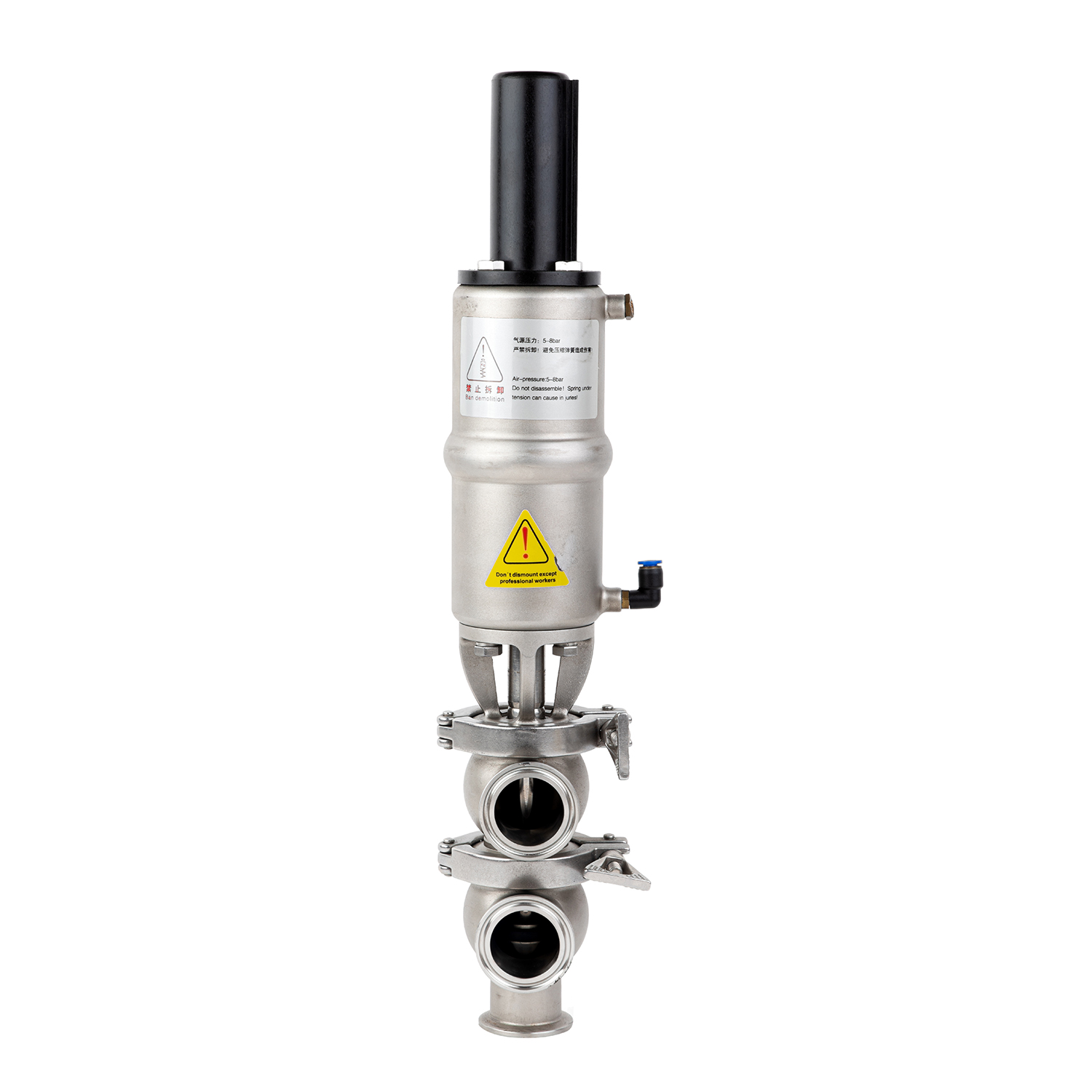

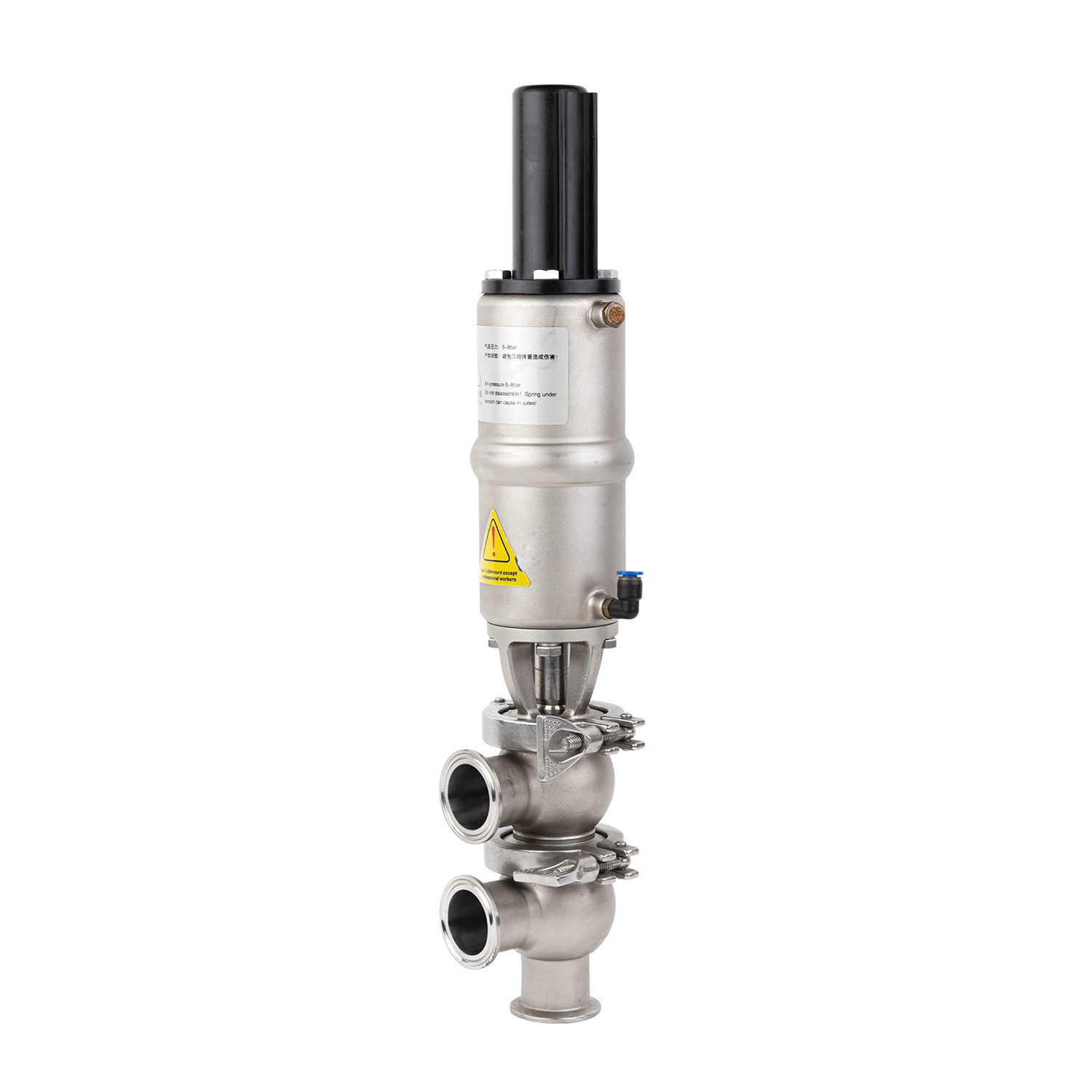

DZ4 sanitary divert valve

Quantity:
Availability:





Inquire Add to Basket

Product Description

Application

The DZ4 sanitary reversing valve adopts a very flexible and hygienic design. It is mainly used in pipeline systems where there is no pollution or mixing. It is a modern and widely used valve, mainly used in wine and dairy products. , Beverage, pharmaceutical and other industries.

working principle

DZ4 series single seat valve series are operated remotely by compressed air. The purpose of opening and closing the valve by controlling the relative position of the spool (cut-off type), or changing the medium flow direction (reversing type).

DZ4 sanitary reversing valve series equipped with MILEE's ZK3 intelligent controller can not only realize the remote control of single-seat valves, but also realize real-time monitoring of valve working status and timely feedback of signals. It can also be equipped with only a position sensor.

DZ4 sanitary reversing valve series can be matched with Proud Corporation's 1066 controller by installing an adapter plate.

Technical Parameter

Metal Material	Parts in contact with the product	316L(1.4404)
	Parts not in contact with the product	304(1.4301)
	Provide EN 10204 3.1B certificate
Seal material	Standard	EPDM Using imported sealing materials, all sealing materials are in line with FDA 177.2600
	Optional	NBR、FPM、Silicone Using imported sealing materials, all sealing materials are in line with FDA 177.2600
temperature	Continuous working temperature	-20~+135℃(EPDM)
	Sterilization temperature	150℃(max 20min)
pressure	Work pressure	0~5bar(standard)
	Undertake higher pressure requirements*
	Control air pressure	5~8bar
Surface treatment	Internal surface treatment	Ra≤0.8μm
	External surface treatment	Shot peening Grit blasting
connection	Connection standard	Welding end: DIN 11850 series 2
		Welding end: Inch pipe diameter standard
	Connection method: welding, thread, quick installation, flange
Optional	smart controller	24V DC
		1/2 solenoid valve
	position sensor	24V DC
		2 NPN or PNP position sensors

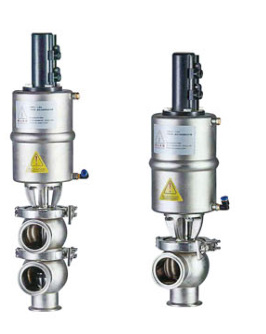

Valve body combination form diagram

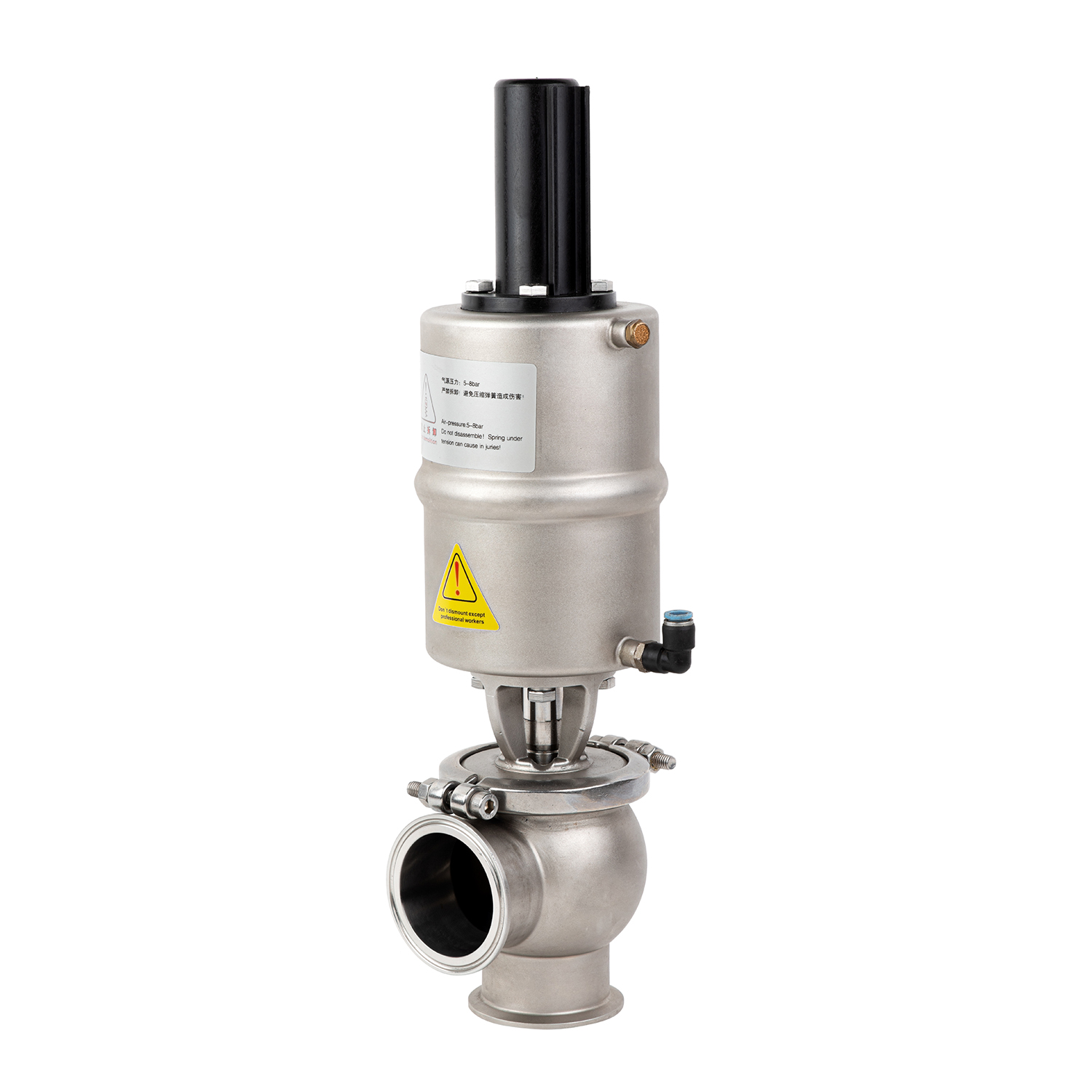

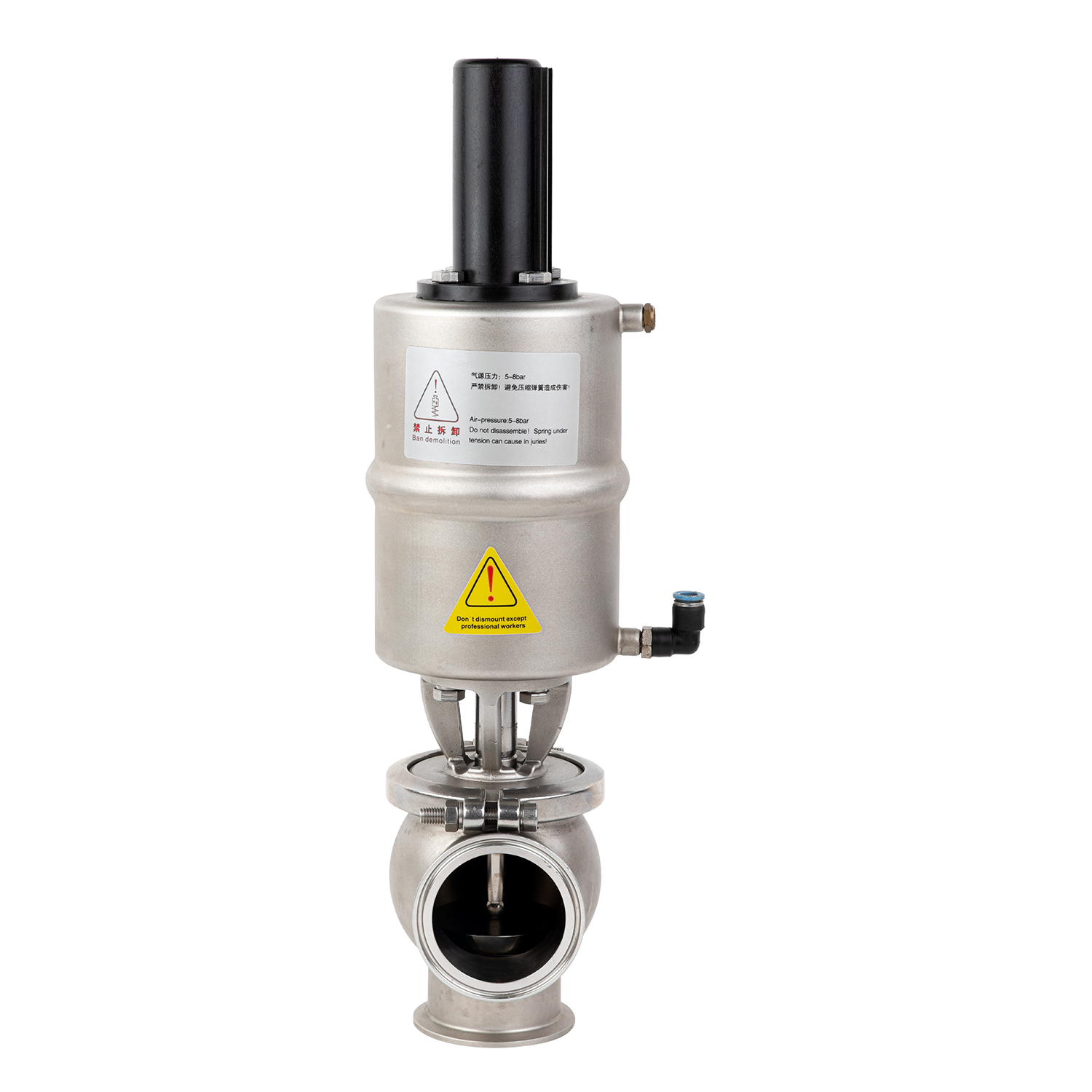

Cut-off

size(mm)

DN	D	K	F	H1	H2	H3	M (Clamp)
25 32 40 50 65 80 100	29×1.5 35×1.5 41×1.5 53×1.5 70×2.0 85×2.0 104×2.0	91 91 91 130 130 195 195	55 65 65 75 90 105 120	402 463.5 463.5 506.7 524.4 629.2 653.7	344 405.5 405.5 448.7 566.2 571.2 595.7	55 62.5 62.5 75 90 105 120	21.5 21.5 21.5 21.5 28 28 28
Inch
1.0" 1.5" 2.0" 2.5" 3.0" 4.0"	25.4×1.65 38.1×1.65 50.8×1.65 63.5×1.65 76.2×1.65 101.6×2.11	91 91 130 130 195 195	55 65 75 85 95 120	402 463.5 506.7 522.5 616.2 653.7	344 405.5 448.7 564.2 558.2 595.7	55 62.5 75 85 95 120	12.7 12.7 12.7 12.7 12.7 15.8

Commutation

Size(mm)

DN	D	K	F	H	H1	H2	H3	M (Clamp)
25	29×1.5	91	65	452.3	394.3	50.3	55	21.5
32	35×1.5	91	65	529.5	471.5	66	62.5	21.5
40	41×1.5	91	65	529.5	471.5	66	62.5	21.5
50	53×1.5	130	75	585.3	527.3	78.6	75	21.5
65	70×2.0	130	90	618.7	560.7	94.3	90	28
80	85×2.0	195	105	739.5	581.5	110.3	105	28
100	104×2.0	195	120	792	724	128.3	120	28
Inch
1.0"	25.4×1.65	91	65	452.3	394.3	50.5	55	12.7
1.5"	38.1×1.65	91	65	529.5	471.5	66	62.5	12.7
2.0"	50.8×1.65	130	75	585.3	527.3	78.6	75	12.7
2.5"	63.5×1.65	130	85	613	555	90.5	85	12.7
3.0"	76.2×1.65	195	95	719.2	661.2	103	95	12.7
4.0"	101.6×2.11	195	120	792	724	128.3	120	15.8
